This module describes multi-column layout in CSS. It builds on the Box model module and adds functionality to flow the content of an element into multiple columns.
This document is a Working Draft in the CSS&FP WG
Please send comments to the editor.
A list of current W3C Recommendations and other technical documents including Working Drafts and Notes can be found at http://www.w3.org/TR.
This CSS3 module depends on the following other CSS3 modules:
This module describes multi-column layout in CSS. By using functionality described in this document, style sheets can declare that the content of an element is to be laid out in multiple colums.
On the web, tables have also been used to describe multi-column layouts. This module has two major advantages over table-based layouts. First, it allows content to flow from one column to another based on available space rather than document structure. Second, this module allows the column width to be specified and the number of columns to vary depending on available space.
This proposal describes a set of new properties in order to support multi-column layouts in CSS. The new properties can be divided into three groups. The first group set the number and width of the columns:
The second group of properties describes the space between columns. The concept of padding and borders are reused from the CSS box model:
The third group consists of one property which make it possible an element to span several columns:

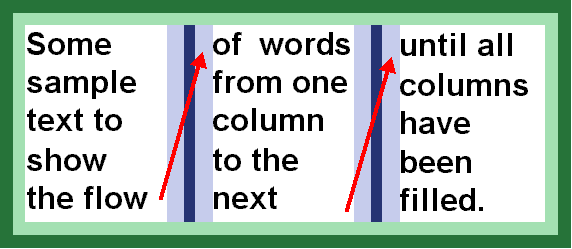

Columns are laid out inside boxes generated by elements. The general box model from CSS has been reused, and implementors should be able to reuse their code. The figure below shows the various components of an element with two columns inside it.
The layout in the figure above can e.g. be achieved with markup like:
<P STYLE="border: solid black 1em; padding: 1em;
column-count: 2; column-border: solid black 1em; column-padding: 1.5em">...</P>
Note that the color of the border and padding areas have been changed for the purpose of illustration in the figures of this document.
Columns within an element all have the same width, padding and border.
Finding the number and width of columns is fundamental when laying out multi-column content. There are three different situations:
Note that the width of the column border and column padding must also be taken into account when computing the widths of the columns. The sum of all these are called CWPB in this proposal. The mathematical definitinon is: CWBP = column_count * column_width + (column_count-1) * (column_border_width) + (column_count-1) * column_padding * 2).
In all three cases, the UA determines the height of the columns based on the content which needs to be fitted. Content should be balanced between columns to minimize the column height, while honoring the 'widows' and 'orphans' properties.

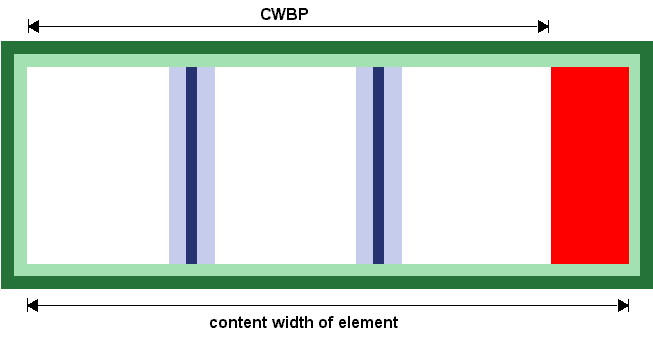

In case 2 and case 3, the content width of the element may be different from CWBP. In the figure below, the difference is marked by the red area.
In no cases can CWPB be larger than the content width of the element. If, based on the specified value of the column properties, this is the case, the actual value of 'column-count' must be reduced to make the columns fit inside the content area.
Here is one example:
DIV {
width: 400px;
column-count: 4;
column-width: 100px;
column-padding: 10%; /* i.e. 10px */
column-border: none;
}
In the example above, the number of columns must be reduced since there isn't room for 4 columns. In order to find the number of columns (n), the following equation must be solved:
300px >= n * 100px + (n-1) * 0px + (n-1) * 10px * 2 where n is the largest possible integer
Solving the equation yields n=2, i.e., the actual value of 'column-count' is 3 and the element will therefore have 3 columns.
The minimum actual value of 'column-count' is 1.
In most cases, the presentation looks best when CWPB is equal to the content width of the element. In order for this to be achieved without setting the width of elements explicitly, the column widths can be computed in a flexible manner. This is controlled with the 'column-width-policy' property.
Value: flexible | strict | inherit
Initial: flexible
Applies to: block-level elements
Inherited: no
Percentage values: N/A
This property describes how to interpret 'column-width'. The 'flexible' value indicates that the width of columns can be increased to fill all the available space. The 'strict' value indicates that 'column-width' is to be honored.
If 'column-width-policy' has a value of 'strict', CWPB may end up being smaller than the content width of the element. See the red area of figure X above. The extra space is distributed according the the value of the 'column-space-distribution' property.
Value: right, left, start, end, top, bottom, inner, outer, between, outside | inherit
Initial: end
Applies to: block-level elements
Inherited: no
Percentage values: N/A
Value: <integer> | auto | inherit
Initial: auto
Applies to: block-level elements
Inherited: no
Percentage values: N/A
The 'column-count' property determines the number of columns into which the content of the element will be flowed.
The 'auto' value means there will be as many columns as there is room for. In this case, the number of columns is determined by the column width, padding and borders.
An integer value sets the number of columns into which the content of the element will be flowed.
Example:
BODY { column-count: 3 }
When an integer value is specified, the actual value of 'column-count' may be reduced so that all columns with into the content area of the document.
Value: <length> | auto | inherit
Initial: auto
Applies to: block-level elements
Inherited: no
Percentage values: N/A
The 'column-width' property describes the optimal width of columns within the element. Depending on the value of 'column-width-policy', the actual column width may be larger than the specified one.
The actual value of 'column-width' may be smaller than the specified value when there is only one column.
Value: <length> | <percentage> | inherit
Initial: 0
Applies to: block-level elements
Inherited: no
Percentage values: relative to 'column-width'
Value: <color> | inherit
Initial: the value of the 'color' property
Applies to: block-level elements
Inherited: no
Percentage values: N/A
Value: <border-style> | inherit
Initial: none
Applies to: block-level elements
Inherited: no
Percentage values: N/A
Note that the 'none' value forces the computed value of 'column-border-width' to be '0'.
Value: <border-width> | inherit
Initial: medium
Applies to: block-level elements
Inherited: no
Percentage values: N/A
Value: [ <'border-width'> || <'border-style'> || <color> ] | inherit
Initial: the value of the 'color' property
Applies to: block-level elements
Inherited: no
Percentage values: N/A
The 'column-span' property makes it possible for an element to span across several columns.
Value: none | all | <integer> | inherit
Initial: none
Applies to: block-level elements
Inherited: no
Percentage values: n/a
This property describes how many columns the element spans. The 'all' value means that the element spans across all columns.
An integer value specifies exactly how many colums the element spans. If the integer value is higher than the number of columns, the element will span all columns.
A value other than 'none' will enforce column balancing.
Consider this example:
<DIV STYLE="column-count: 3; column-border: solid black 0.3em; column-padding: 0.3em"> <H1 STYLE="column-span: all">An imporant element</H1> <P>...</P> <H2 STYLE="column-span: 2">A not-so important element</H2> <P>...</P> </DIV>

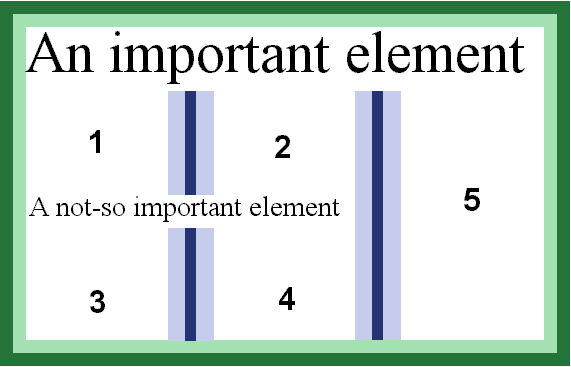

In the above example, the H1 and the H2 elements will span 3 and 2 columns, respectvely. Also, both elements will enforce column balancing to happen. Here is a sample rendering:
In the above figure, the numbers indidcate in what order the content will flow. The first P element will flow into area 1 and 2, while the second P element will flow into area 3, 4 and 5.
Page breaks will also cause column balancing.
Here is another example:
<DIV CLASS="article"> <H1>The headline</H1> <P CLASS="intro">The introduction, sometimes called "ingress". <P>A normal paragraph. <P>Another normal paragraph. </DIV>
It's convenient to wrap the DIV element around the whole article. However, the headline and ingress should span several columns:
DIV.article { column-count: 3 }
DIV.article H1 { column-span: all }
DIV.article P.intro { column-span: 2 }
A common effect in modern typography is to float text elements in and between columns. Describing this effect in a simple, scalable, deterministic and visually pleasing manner is difficult. This document proposes a simple solution by adding two new values to the 'float' property: 'in-column' and 'mid-column'. Both values has the effect of setting the content width of the floating element to the column width. The 'in-column' value floats the element within a column, i.e. the vertical position of the element may change due to viual considerations. For example, the UA may decide that 'in-column' elements are to be placed 10em from the top of the box. Similarly, the UA is free to place "mid-column" elements vertically while making sure the elements are floated in between columns. See figure below.
Both new values are rather fuzzy: they indicate that an element should be floated, but does not give precise measurements. For example, there is no way to say which columns a "mid-column" element should float between.
Here is an example of use:
P.teaser {
float: mid-column;
}
This document is based on several older proposals and comments on older proposals. Contributors include Bert Bos, Dave Raggett, Chris Wilson, Robert Stevahn, Peter Linss, Chris Lilley, Steve Zilles, Tantek Celik, Daniel Glazman and Ian Hickson.
